Echomap Ultra2 122SV Chartplotter + GT56UHD-TM Transducer

Echomap Ultra2 122sv + GT56UHD-TM Transducer - Garmin

The Garmin Echomap Ultra2 122sv paired with the GT56UHD-TM transducer is one of the most complete and high-performance solutions for anyone looking for sonar precision, advanced charting, and absolute reliability on every trip offshore. This bundle integrates three distinct sonar technologies into a single system, providing a complete view of the aquatic environment both below and to the sides of the boat.

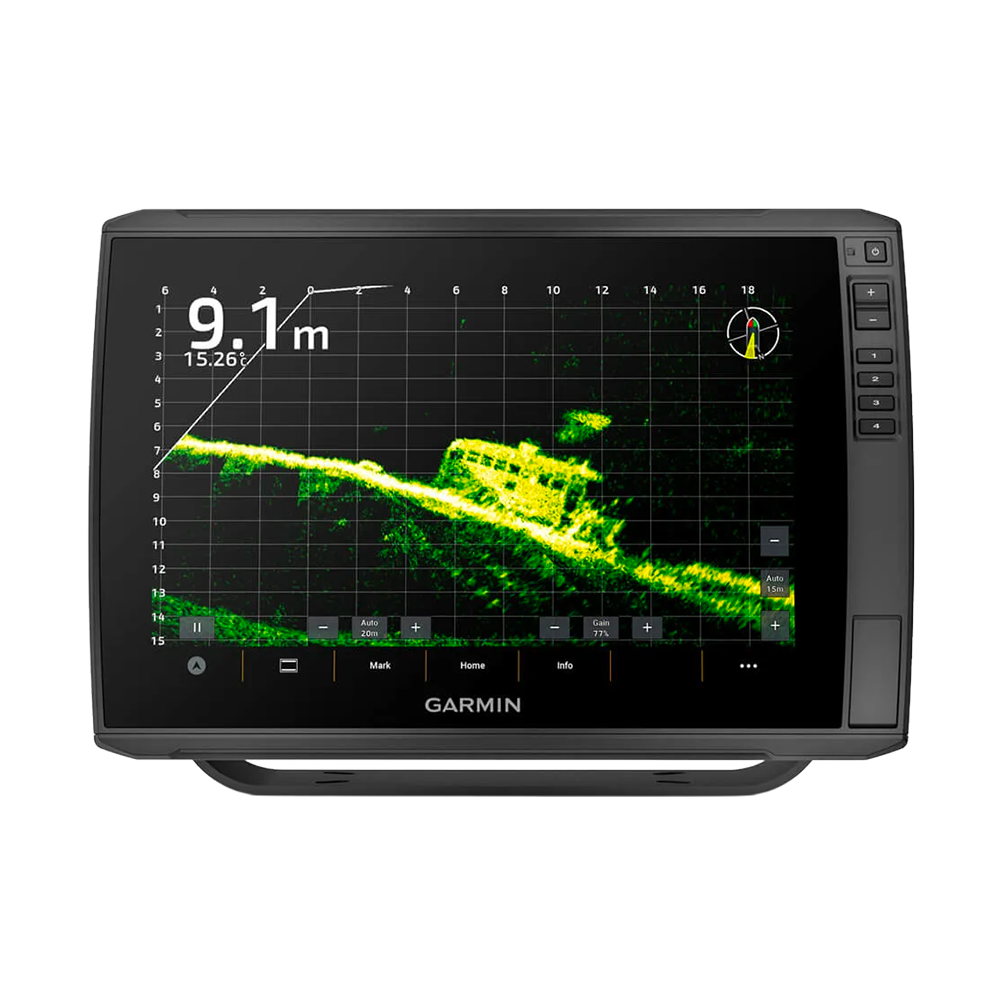

High-Brightness 12" Display

The 12" WXGA IPS touchscreen display with 1280 x 800 pixel resolution delivers vivid images that remain perfectly readable even in direct sunlight. The interface combines touchscreen control and assistive physical keys, ensuring fast, intuitive operation even with wet hands or in adverse weather conditions. The compact panel dimensions (26.1 x 16.3 cm, 30.7 cm diagonal) do not compromise the clarity of the information displayed.

Three Sonar Technologies in One Device

The technical core of the system is the GT56UHD-TM transducer, which enables three different sonar modes:

• Traditional CHIRP single-channel: 70 / 83 / 200 kHz frequencies (L, M, H CHIRP) for precise bottom and fish readings

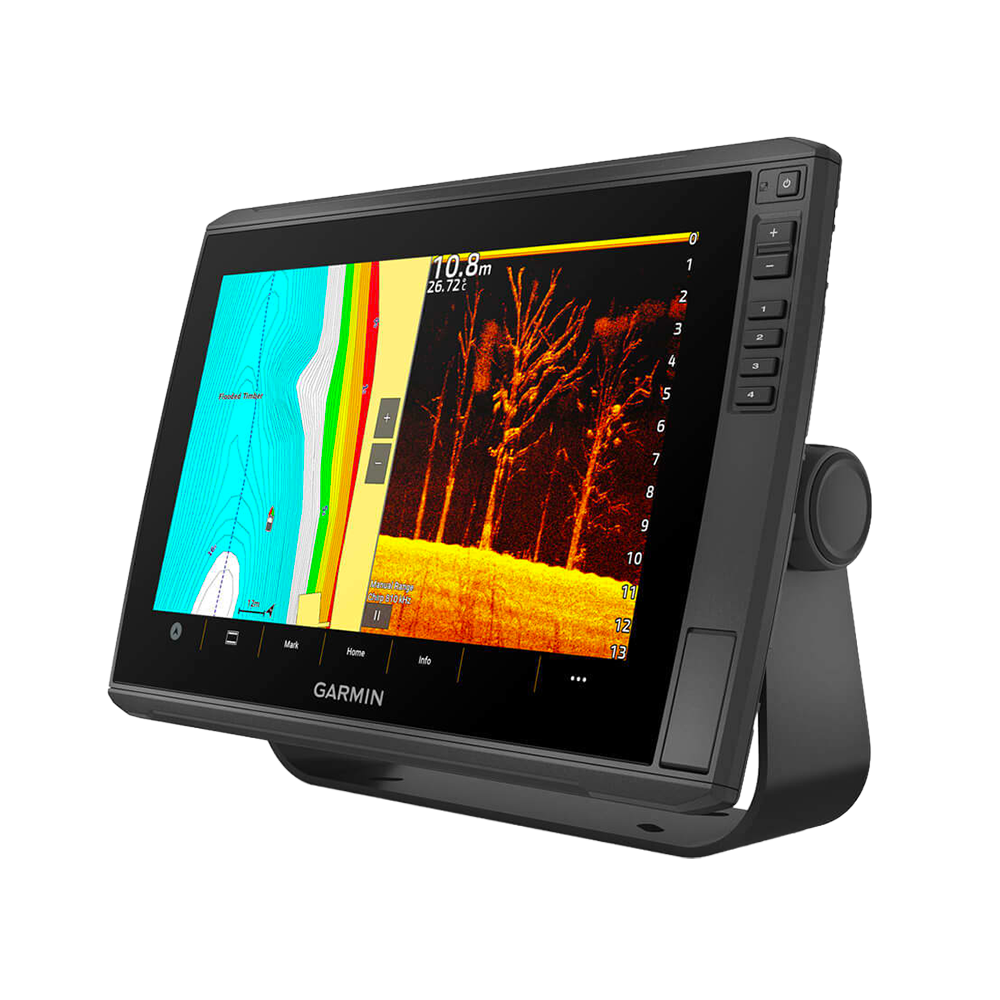

• ClearVü UHD: 260 / 455 / 800 / 1000 / 1200 kHz frequencies for near-photographic images of what is directly below the boat

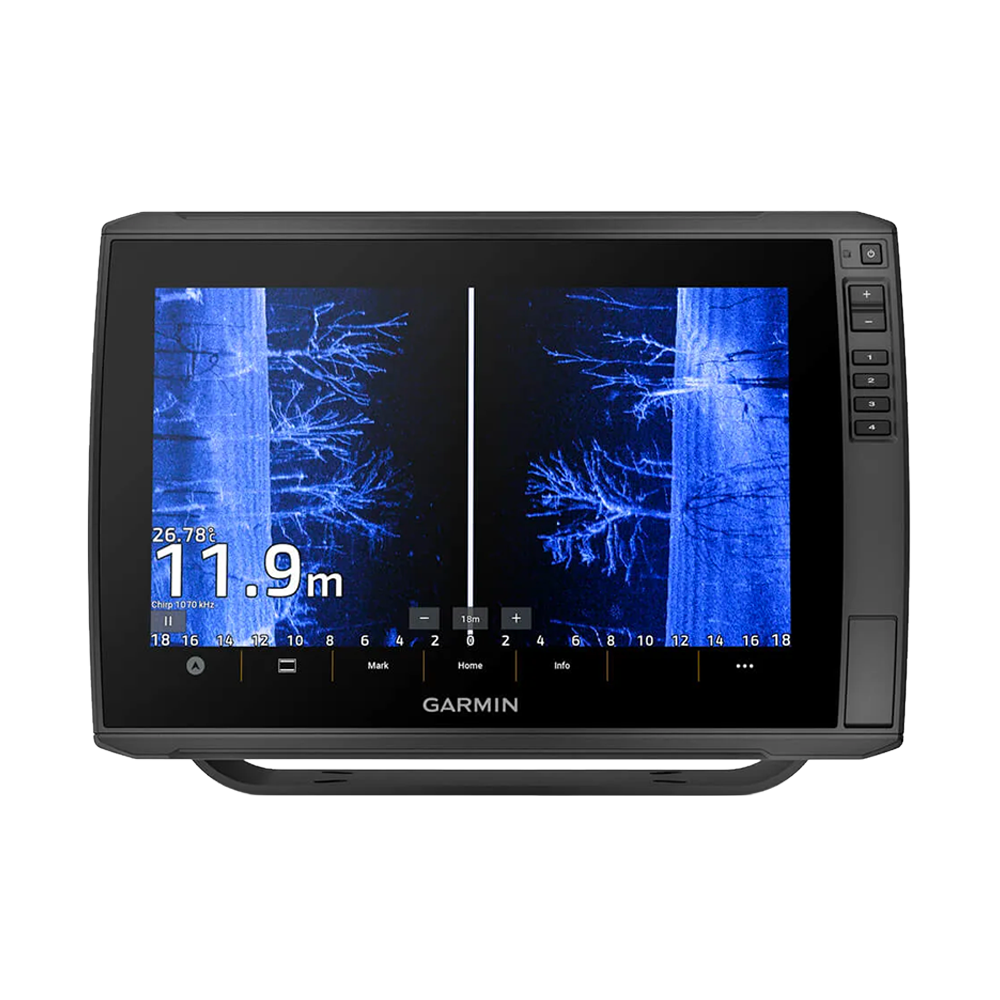

• SideVü UHD: 455 / 800 / 1200 kHz frequencies for ultra-high-definition side scanning of structure, bottom, and fish along the sides of the hull

The 600 W RMS sonar power ensures signal penetration and clarity even at greater depths.

LiveScope™ Support for Real-Time Scanning

The Echomap Ultra2 series is compatible with the entire LiveScope™ ecosystem by Garmin, the live-scanning sonar technology that lets you see fish moving in real time, both in front of and below the boat. LiveScope transducers are sold separately.

Advanced Charting and Navigation

The chartplotter is compatible with Garmin’s main charting solutions:

• Garmin Navionics+™ and Garmin Navionics Vision+™ with constantly updated coastal and inland water content
• Quickdraw Contours: create custom bathymetric maps in real time with accuracy down to 30 cm
• Worldwide basemap included as standard

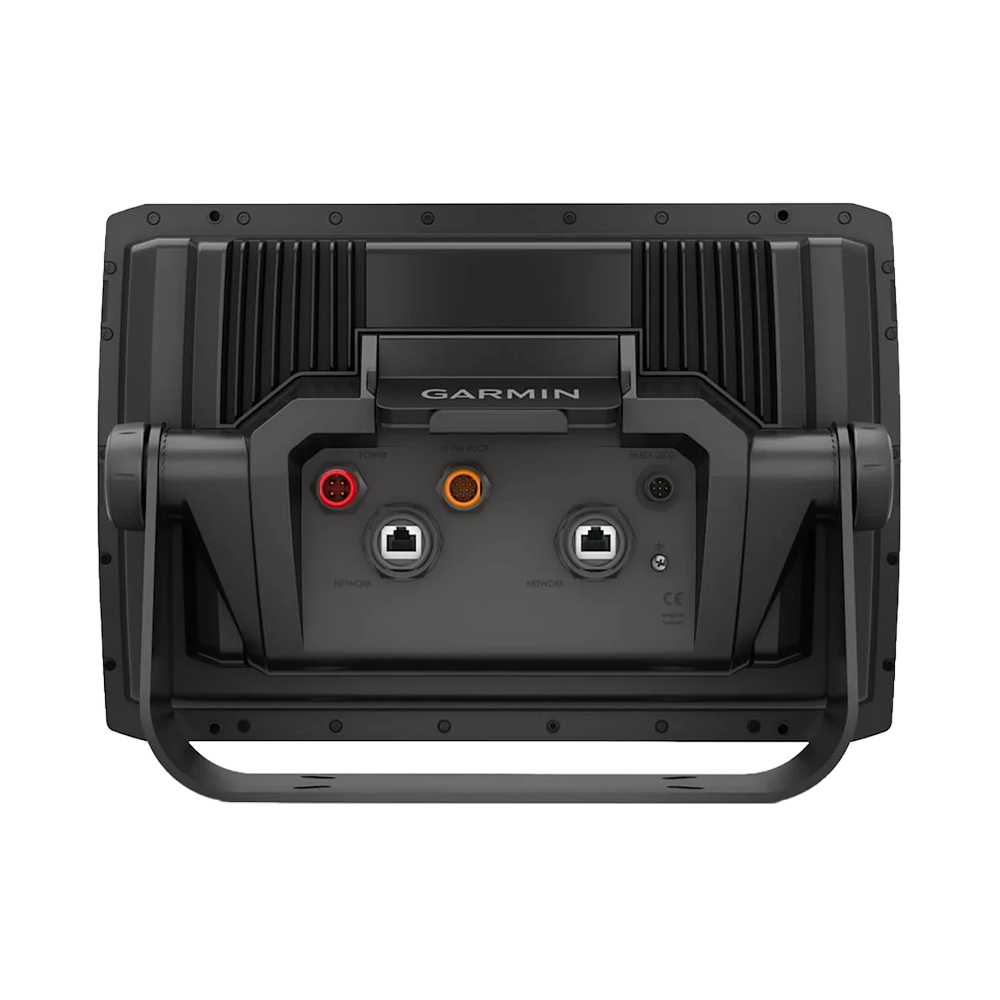

Multiband GPS and Full Connectivity

The multiband GNSS receiver (GPS, GLONASS, Galileo, BeiDou) ensures an accurate and reliable position at all times, even in challenging signal conditions. Integrated connectivity includes:

• Built-in Wi-Fi: wireless sharing of sonar, waypoints, and routes with other UHD2 series chartplotters
• NMEA 2000 and Marine Network for integration with other onboard instruments
• ANT™ for connection with compatible devices
• 12-pin transducer port
• Slot for 2 microSD cards

ActiveCaptain App and Smart Features

Through the Garmin ActiveCaptain mobile app, the chartplotter connects to your smartphone to access:

• OneChart function for unified management of nautical charts
• Smart Notification: receive phone notifications directly on the display
• Wireless software updates
• Garmin QuickDraw Community data
• Recording and sharing screen recordings of catches

Technical Specifications

• Dimensions: 34.1 x 22.9 x 9.8 cm
• Weight: 2.5 kg
• Water rating: IPX7
• Display: 12" WXGA IPS, 1280 x 800 px, touchscreen + physical keys

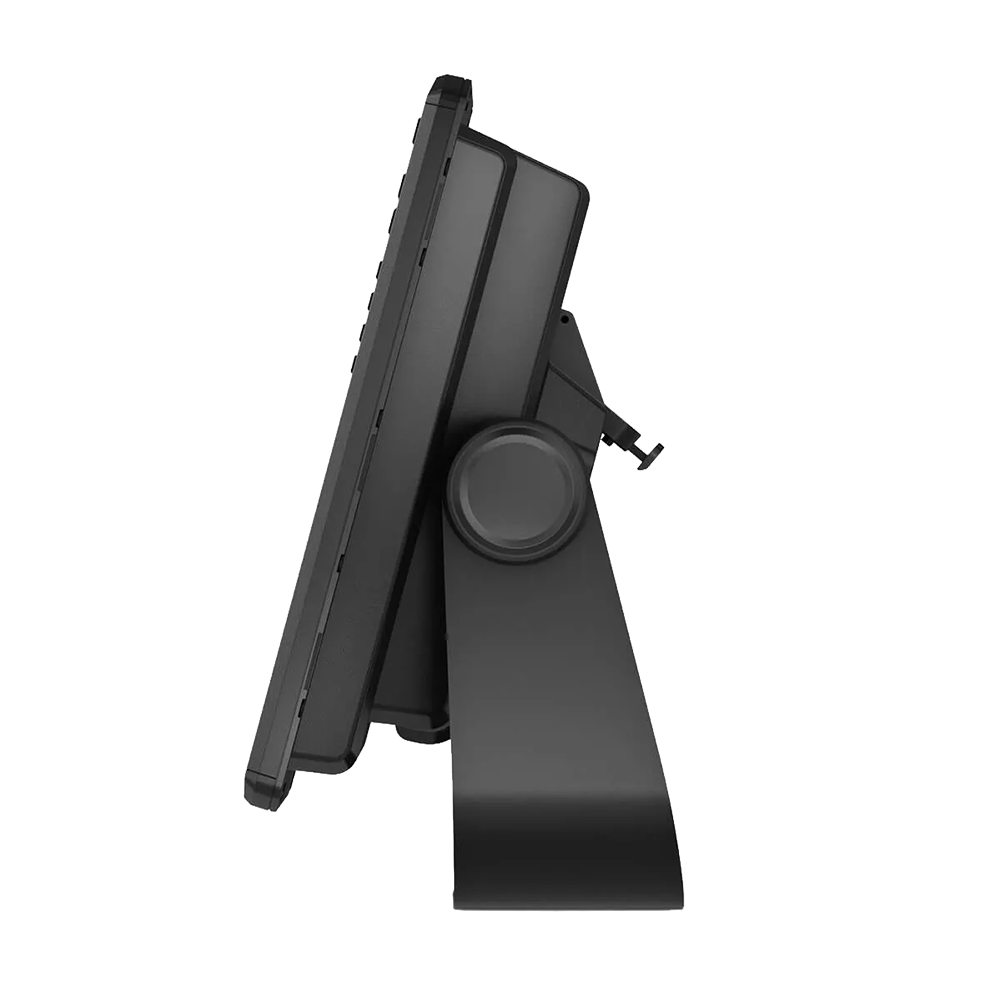

• Mounting: bail mount or flush mount
• GNSS: multiband (GPS, GLONASS, Galileo, BeiDou)
• Sonar power: 600 W RMS
• CHIRP sonar: 70 / 83 / 200 kHz (L, M, H)
• ClearVü / SideVü UHD: 260 / 455 / 800 / 1000 / 1200 kHz
• Waypoints: up to 5,000 | Tracks: 50 | Routes: 100
• Connectivity: Wi-Fi, NMEA 2000, Marine Network, ANT, 12-pin port, 2x microSD

Package Contents

• Garmin Echomap Ultra2 122sv chartplotter
• GT56UHD-TM transducer
• Power/data cable
• Mounting bracket with quick-release cradle
• Protective sun cover
• Hardware and documentation
